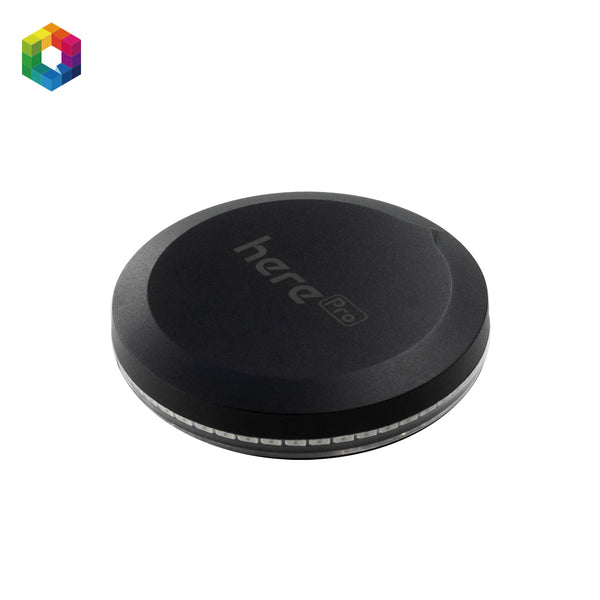

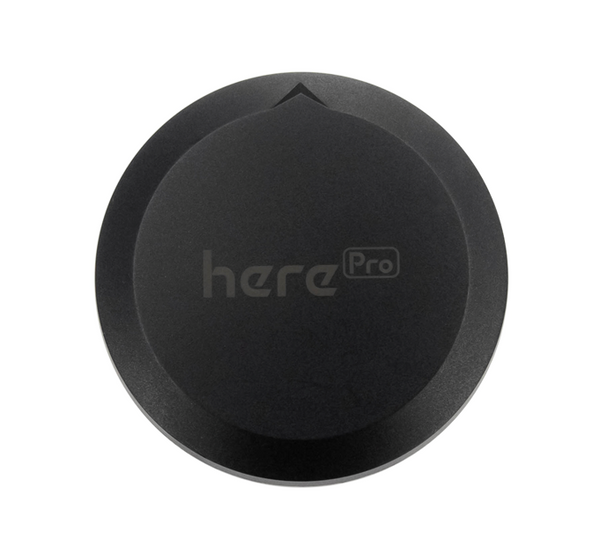

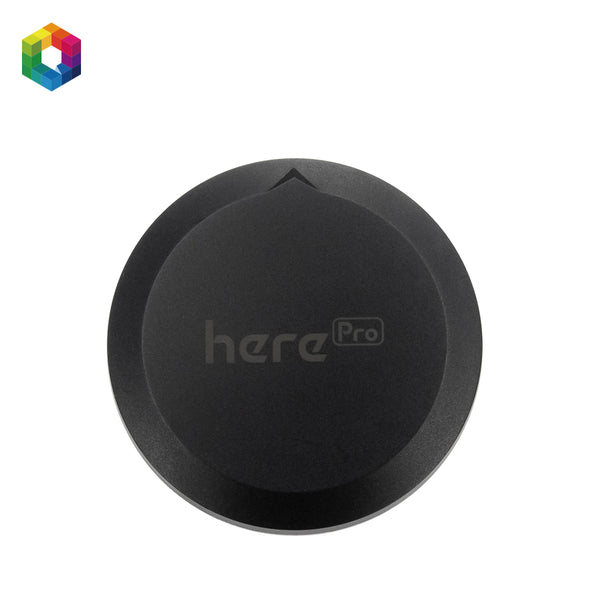

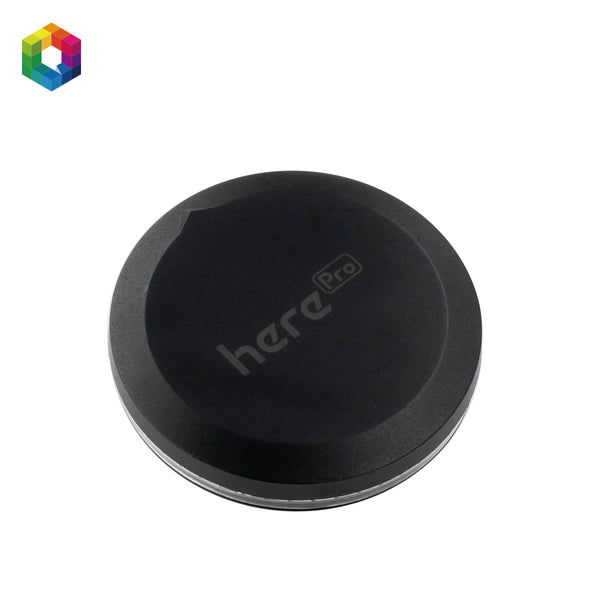

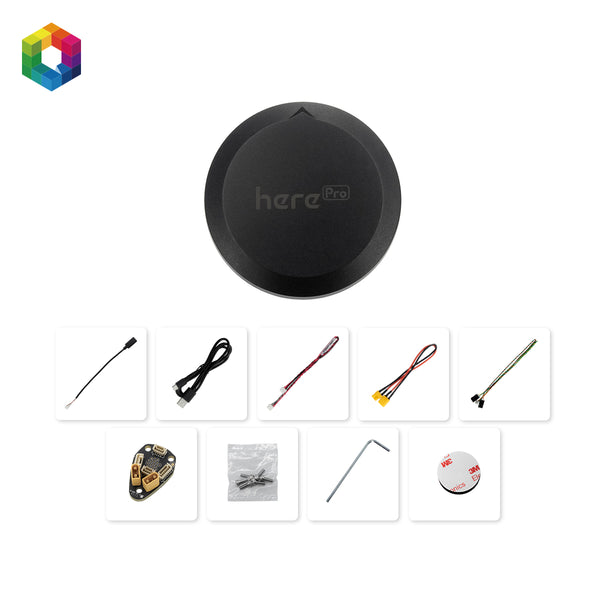

HerePro without iStand
HerePro without iStand — GNSS-приёмник для высокоточной навигации БПЛА от CubePilot. Входное напряжение: 6 V - 40 V (maximum 60V). Вес: 101g（without cable）.
Технические характеристики
| Производитель | CubePilot |
| Артикул | HX4-06216 |
| Тип приёмника | 184-channel u-blox F9P |
| Системы GNSS | BeiDou, Galileo, GLONASS, GPS, QZSS |
| Satellite bands | BDS B1I B2I, GPS L1C/A L2C, GLONASS L1OF L2OF, GALILEO E1B/C E5b, QZSS L1C/A L2C |
| Maximum GNSS systems | 4 |
| Частота обновления навигации | Up to 20 Hz for RTK |
| Horizontal and vertical accuracy | RTK 0.01m +1ppm CEP |
| Heading accuracy | 0.4 degrees |
| PVT horizontal positioning accuracy | 1.5m CEP |
| Maximum altitude | 50,000 m |
| Maximum speed | 500 m/s |
| Convergence time | RTK 10s |
| Acquisition | Cold starts 24s |
| Sensitivity | Tracking Navigation: –167 dBm |
| Antenna | Multi-band dual antenna |
| Timepulse | Configurable from 0.25hz to 10mhz |
| Protocols | NMEA、UBX binary、RTCM 3.3 |
| Anti-jamming | Active CW detection and removal |
| Anti-spoofing | Advanced anti-spoofing algorithms |
| USB / GPIO | x1 / x2 |
| SD card | 16G |
| Flash | 2M |
| RAM | 1M |
| Входное напряжение | 6 V - 40 V (maximum 60V) |
| Working Temperature | -40 °C to +85 °C |
| Размер | 15 x 78 mm |
| Вес | 101g（without cable） |
