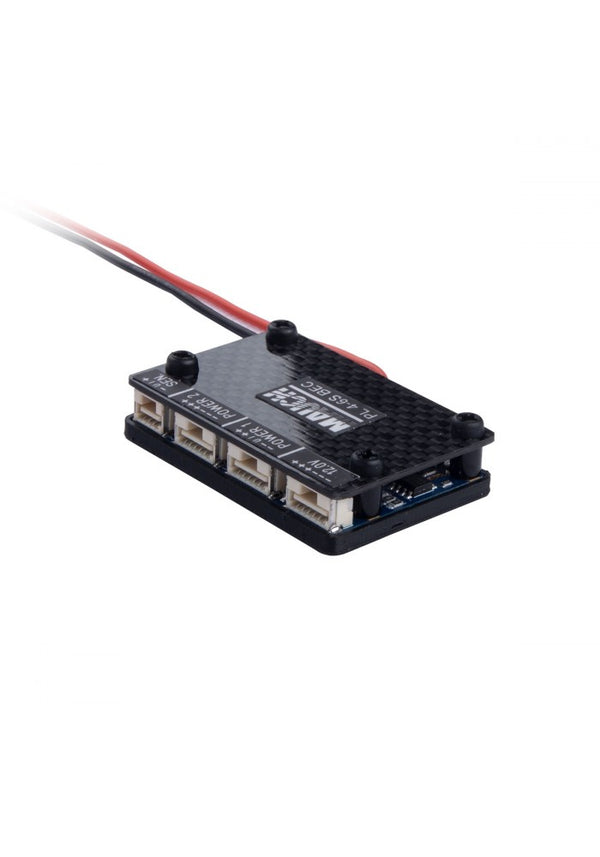

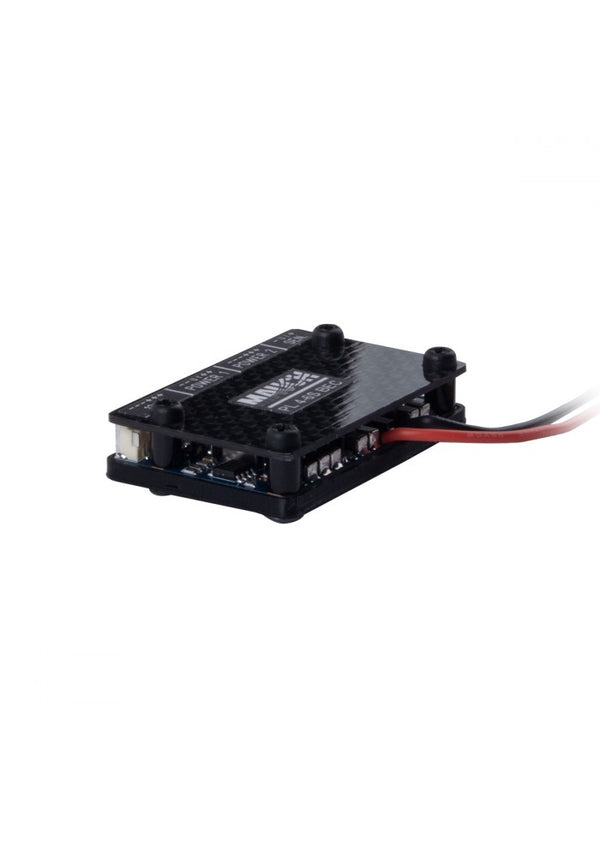

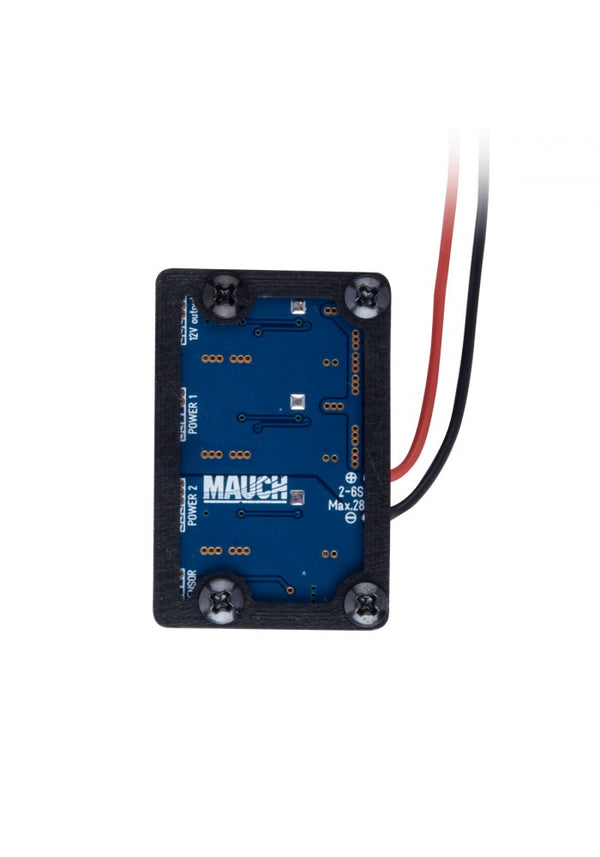

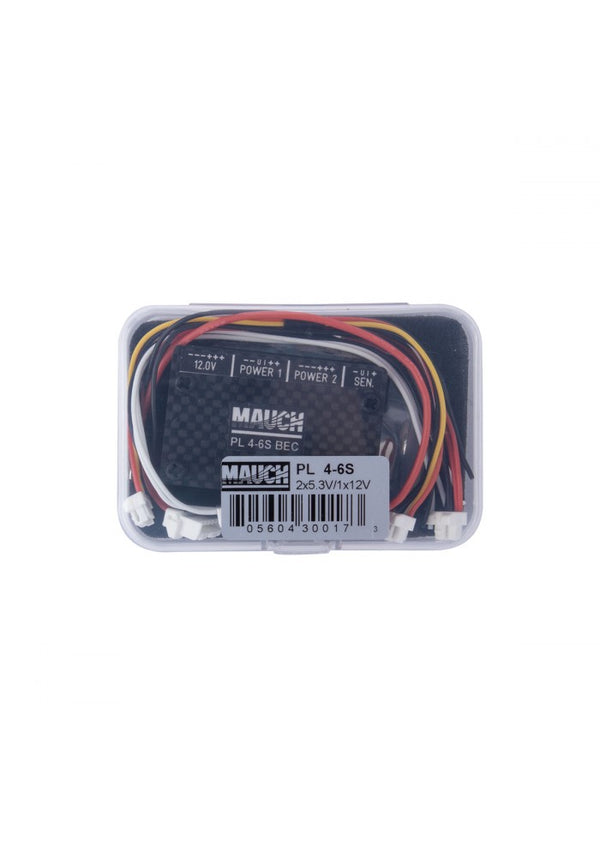

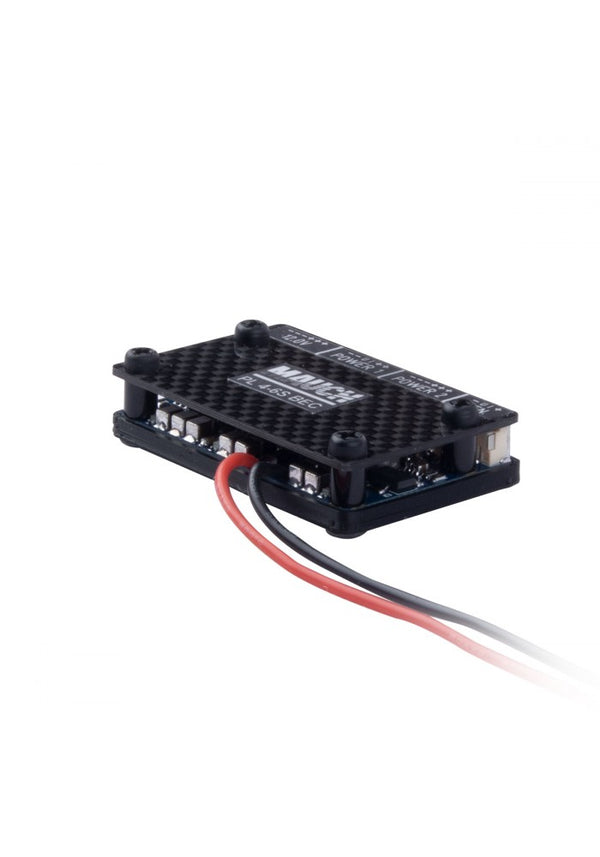

Mauch 017: PL 4-6S BEC 2x5.35V 1x12.0V

Mauch 017: PL 4-6S BEC 2x5.35V 1x12.0V — модуль питания для БПЛА от Mauch Electronics. User Manual: DOWNLOAD Input 4-6S LiPo / max. 28V. Output 2x 5.35V / 3A + 1x 12.0V / 3A - +/- 0.05V – Ripple 10mV (0.2%) at 1.5A output current. Inclusive LDO power supply (+5.00V +/- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2 and output connector with Molex Clik-Mate 4p. Input wrong polarity protection, as well as TDK input and output capacitors to prevent burn out of the UBEC
