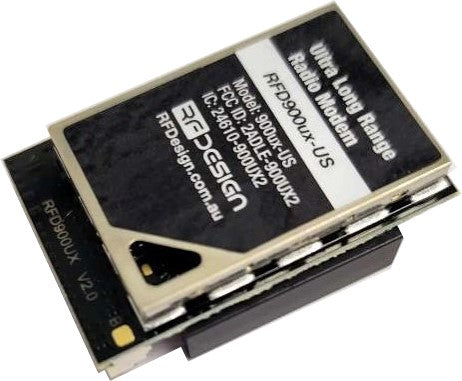

RFD 900ux-US (FCC Approved)

RFD 900ux-US (FCC Approved) — радиомодем/телеметрия для дальнобойной связи БПЛА от RFD. Диапазон частот: 902 - 928 MHz (USA). Выходная мощность: 1W (+30dBm). Вес: 10g. Особенности: Fully compatible with RFD900x modems.; Air data rate up to: 500kbit/s.; AES Hardware accelerated encryption.; RC PPM Pass through with telemetry at the same time..

Технические характеристики

Производитель	RFD
Артикул	RF111
Air data rate up to	500kbit/s.
RF	2x u.FL RF connectors
Serial	Logic level TTL (+3.3v)
Power	+5v, ~800mA max peak (at maximum transmit power)
GPIO	General purpose IO (Digital capable).
Диапазон частот	902 - 928 MHz (USA)
Выходная мощность	1W (+30dBm)
Air Data transfer rates	12, 56, 64, 100, 125, 200, 224, 500 and 750 kbit/sec (User settable, 64kbit default)*
UART data transfer rates	1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 1M baud (User settable, 57600 default)*
Receive Sensitivity	111 dBm at 12kbps, 105 at 64 kbps and 98 at 200 kbps
Размер	25 mm (wide) x 33 mm (long) x 10.4 mm (thick) - Including RF Shield, PCB and Heatsink.
Вес	10g
Монтаж	SMT Soldered
Power Supply	+5 V nominal, (+3.5 V min, +5.5 V max), ~800 mA peak at maximum power
Temp. Range	-40 to +85 deg C
AS/NZS 4268	2012 (Radio equipment and systems - short range devices)
