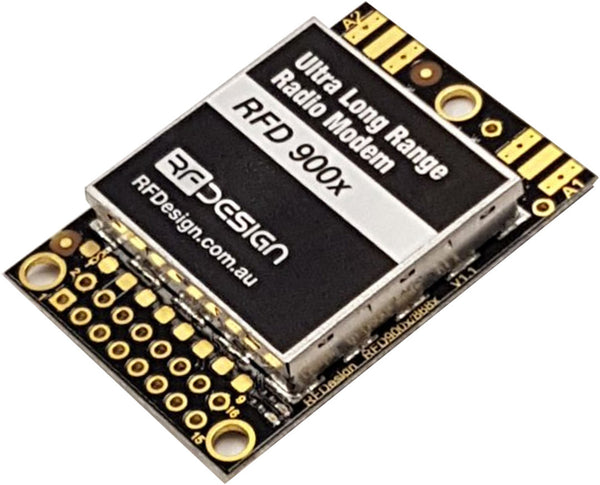

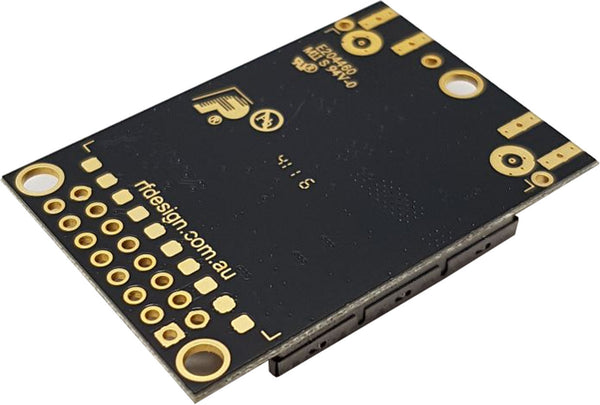

RFD 900x Модем BARE

RFD 900x Модем BARE — радиомодем/телеметрия для дальнобойной связи БПЛА от RFD. Диапазон частот: 902 - 928 MHz (USA) / 915 - 928 MHz (Australia). Выходная мощность: 1W (+30dBm). Вес: 14.5g. Особенности: No Pin header (16Way), No RF Connectors, No heatsink - enabling easier OEM integration into products.; New Processor, ARM 32 bit core.; Air data rate: 500kbit/s.; AES Hardware accelerated encryption. *Fully working*.

Технические характеристики

Производитель	RFD
Артикул	RF309
Air data rate	500kbit/s.
Serial	Logic level TTL (+3.3v)
Power	+5v, ~800mA max peak (at maximum transmit power)
GPIO	6 General purpose IO (Digital capable).
Диапазон частот	902 - 928 MHz (USA) / 915 - 928 MHz (Australia)
Выходная мощность	1W (+30dBm)
Air Data transfer rates	12, 56, 64, 100, 125, 200, 224, 500 and 750 kbit/sec (User settable, 64kbit default)*
UART data transfer rates	1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 1M baud (User settable, 57600 default)*
Receive Sensitivity	111 dBm at 12kbps, 105 at 64 kbps and 98 at 200 kbps
Размер	30 mm (wide) x 57 mm (long) x 12.8 mm (thick) - Including RF Shield, Heatsink and connector extremeties
Вес	14.5g
Монтаж	3 x M2.5 screws, 3 x header pin solder points
Power Supply	+5 V nominal, (5V min, +5.5 V max), ~800 mA peak at maximum power
Temp. Range	-40 to +85 deg C, tested operational from -73 to +123 deg C.
AS/NZS 4268	2012 (Radio equipment and systems - short range devices)
