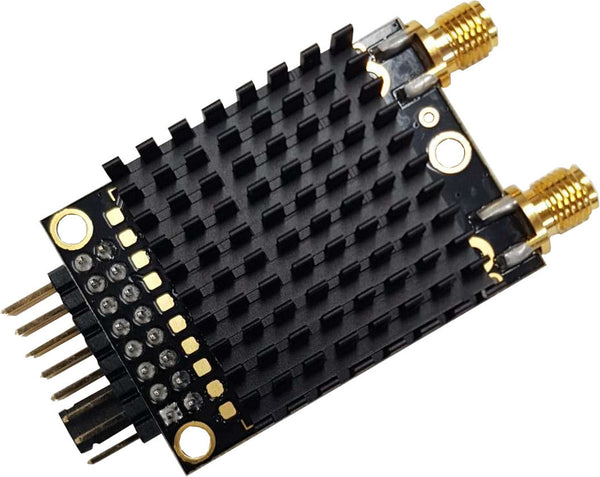

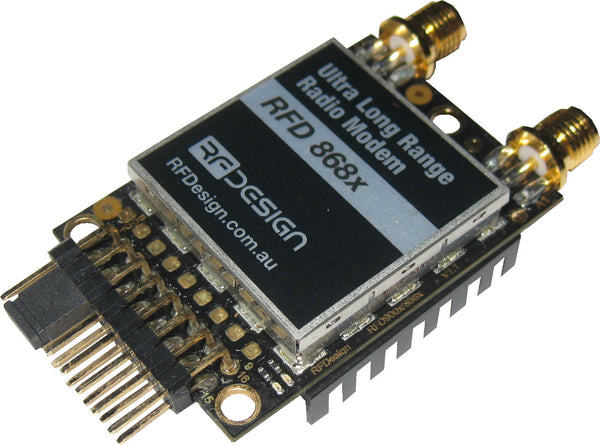

RFD868x Модем
RFD868x Модем — радиомодем/телеметрия для дальнобойной связи БПЛА от RFD. Диапазон частот: 865-870 MHz. Выходная мощность: 1W (+30dBm). Вес: 14.5g. Особенности: New Processor, ARM 32 bit core.; Air data rate: 200kbit/s.; AES Hardware accelerated encryption. *Fully working*; RC PPM Passthrough with telemetry at the same time..
Технические характеристики
| Производитель | RFD |
| Артикул | RF112 |
| Air data rate | 200kbit/s. |
| RF | 2 x RP-SMA connectors |
| Serial | Logic level TTL (+3.3v) |
| Power | +5v, ~800mA max peak (at maximum transmit power) |
| GPIO | 6 General purpose IO (Digital capable). |
| Диапазон частот | 865-870 MHz |
| Выходная мощность | 1W (+30dBm) |
| Air Data transfer rates | 12, 56, 64, 100, 125, 200, 224, 500 and 750 kbit/sec (User settable, 64kbit default)* |
| UART data transfer rates | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 1M baud (User settable, 57600 default)* *note these values are correct as of version 3.16 SiK firmware |
| Receive Sensitivity | 111 dBm at 12kbps, 105 at 64 kbps and 98 at 200kbps |
| Размер | 30 mm (wide) x 57 mm (long) x 12.8 mm (thick) - Including RF Shield, Heatsink and connector extremeties |
| Вес | 14.5g |
| Монтаж | 3 x M2.5 screws, 3 x header pin solder points |
| Power Supply | +5 V nominal, (+3.5 V min, +5.5 V max), ~800 mA peak at maximum power |
| Temp. Range | -40 to +85 deg C, tested operational from -73 to +123 deg C. |
